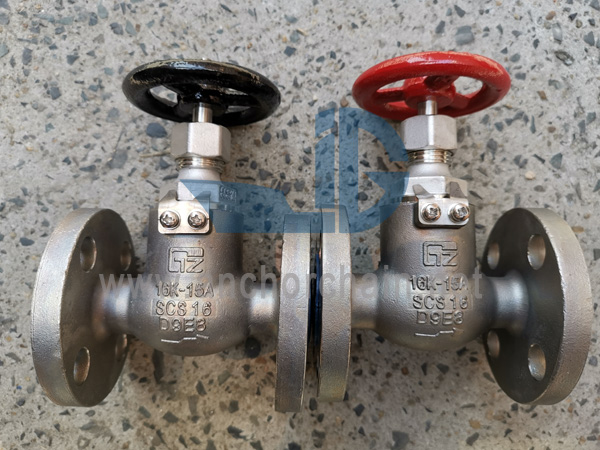

JIS F 7303 16K SCS16 Acier inoxydable Globe ValvesDesign Standard : JIS F7303-1996Test Standard : JIS F7400-1996Test Pressure : Body-3.3Mpa, Seat-2.42MpaFlange Size selon JIS B2220-16K
Taille de bride selon JIS B2220-16K
Matériau principal:
1-Corps : acier inoxydable (SCS16)/SUS316L
2 disques : acier inoxydable (SCS16)/SUS316L
3 tiges : acier inoxydable (SCS16)/SUS316L
4-Capot : Acier inoxydable(SCS16)/SUS316L
5 volants : fonte (FC200)
Code IMPA | Taille | L | D | C | Pas de trou de boulon | h | t | H | D2 |
750141 | 15 | 110 | 95 | 70 | 4 | 15 | 12 | 130 | 80 |
750142 | 20 | 120 | 100 | 75 | 4 | 15 | 14 | 140 | 100 |
750143 | 25 | 130 | 125 | 90 | 4 | 19 | 14 | 160 | 125 |
750144 | 32 | 160 | 135 | 100 | 4 | 19 | 16 | 170 | 125 |
750145 | 40 | 180 | 140 | 105 | 4 | 19 | 16 | 190 | 140 |
